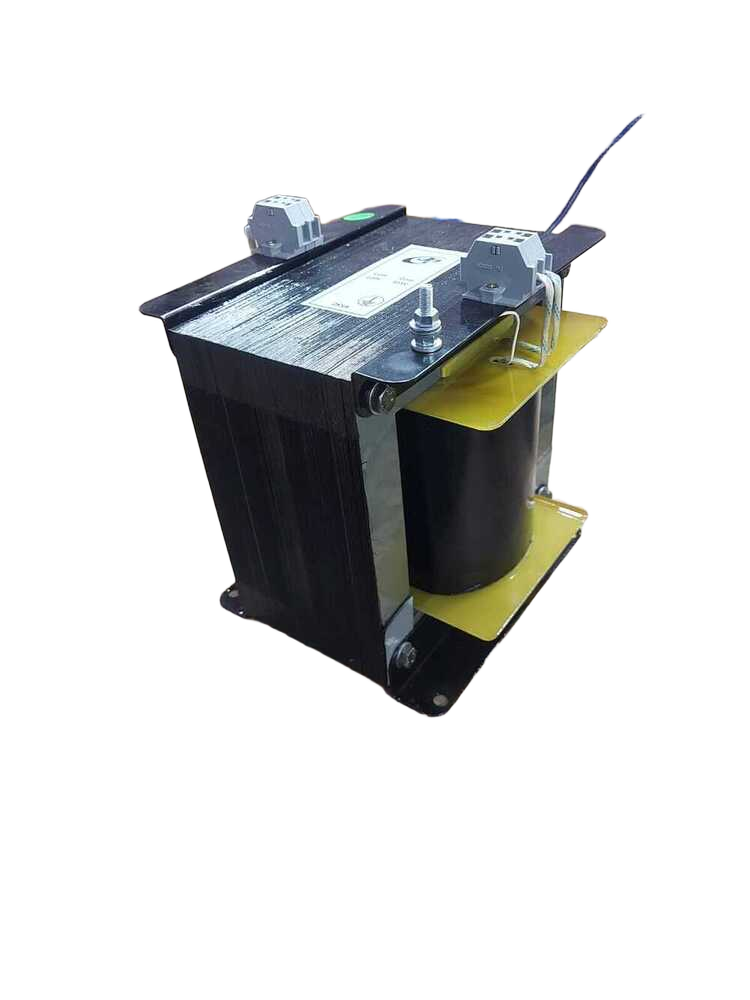

Industrial Transformer

• Capacity
• Up to 5000 VA (varies by specification)

• Coil Material
• Other , High purity copper

• Coil Number
• Other, 2 (Primary and Secondary)

• Coil Structure
• Other, Toroidal or laminated core, primary and secondary coils

• Cooling Type
• Natural air cooled

• Dimension (L*W*H)
• 150 x 120 x 180 mm (typical)

• Efficiency
• 95-98%

• Frequency (MHz)
• 50/60 Hz

• High Voltage
• 220V-240V

• Load Loss
• <2%

• Low Voltage
• 12V-48V (varies according to design)

• Material
• Copper windings, silicon steel core, plastic and metal casing

• Operating Temperature
• -10C to +60C

• Output
• 12V/24V/48V/110V/230V (selectable based on model)

• Phase
• Single Phase

• Power Scope
• Up to 5 kVA (varies by model)

• Product Type
• Other, Electromagnetic Transformer

• Rated Voltage
• 230V / 110V (input)

• Standard
• IS 2026, IEC 60076

• Usage
• Industrial equipment, control systems, power supply applications

• Voltage Booster Type
• Other, Step-up or Step-down (configurable)

• Weight
• 1 kg to 10 kg (depends on capacity)

• Capacity
• Depends on model (e.g., 0.5kVA, 1kVA, 3kVA, etc.)

• Coil Material
• Other , Copper

• Coil Number
• Other, 2 (Primary and Secondary)

• Coil Structure
• Other, Toroidal / Layer Wound

• Cooling Type
• Dry/Air cooled

• Dimension (L*W*H)
• Custom, typical 120mm x 95mm x 110mm (for 1kVA)

• Efficiency
• Up to 98%

• Frequency (MHz)
• 50/60Hz

• High Voltage
• 230V or 220V (as per design)

• Load Loss
• Low (approx. 20-30W/kVA)

• Low Voltage
• 24V, 48V, 110V, or as specified

• Material
• Copper windings and high-grade silicon steel core

• Operating Temperature
• -10C to +50C

• Output
• AC Single-Phase Output

• Phase
• Single Phase

• Power Scope
• Customizable (typical range: 50VA - 10kVA)

• Product Type
• Other, Isolation Transformer / Step-down Transformer

• Rated Voltage
• 230V/110V or customized

• Standard
• IS 2026 / IEC 60076 or equivalent

• Usage
• Industrial/Commercial electrical isolation and voltage regulation

• Voltage Booster Type
• Other, Not applicable for this transformer type

• Weight
• Varies with rating (example: 3kg for 1kVA)

• Capacity
• 0.5 kVA - 500 kVA (customizable)

• Coil Material
• Other , Copper or Aluminum

• Coil Number
• Other, 3 (one for each phase)

• Coil Structure
• Other, Toroidal or layered wound coils

• Cooling Type
• Air cooled / Natural convection

• Dimension (L*W*H)
• Custom, generally from 300mm x 250mm x 250mm and upwards

• Efficiency
• Up to 98%

• Frequency (MHz)
• 50/60 Hz (not MHz)

• High Voltage
• 415V or as per request

• Load Loss
• Low (design optimized for minimal losses)

• Low Voltage
• As per design/application

• Material
• Copper/Aluminum windings, laminated steel core

• Operating Temperature
• -20C to +55C

• Output
• Varying based on voltage drop, typically 415V/230V system compatible

• Phase
• Three Phase

• Power Scope
• Suitable for a wide power range (typically 0.5 kW to 500 kW and above)

• Product Type
• Other, Line Choke Transformer

• Rated Voltage
• 415V / 380V / 440V (custom options available)

• Standard
• IS 5553, IEC 60076

• Usage
• Used for limiting the current and filtering harmonics in AC drives and power electronics

• Voltage Booster Type
• Other, Not applicable (used as line reactor, not booster)

• Weight
• Varies with rating, approx. 20-150 kg depending on size

• Capacity
• 5 kVA to 500 kVA

• Coil Material
• Other , Copper/Aluminum

• Coil Number
• Other, 3 (for each phase)

• Coil Structure
• Other, Toroidal/Layer wound

• Cooling Type
• AN (Air Natural), ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• Custom, e.g., 800mm x 500mm x 600mm for 50 kVA

• Efficiency
• 98%

• Frequency (MHz)
• 50/60 Hz (0.05/0.06 MHz)

• High Voltage
• 415V/400V/380V

• Load Loss
• 2% of rated load

• Low Voltage
• 220V/230V/240V (customizable)

• Material
• Copper/Aluminum windings with laminated silicon steel core

• Operating Temperature
• -25C to +45C

• Output
• 415V/400V (custom on request)

• Phase
• Three Phase

• Power Scope
• Customizable, typically 5 kVA to 500 kVA

• Product Type
• Isolation Transformer

• Rated Voltage
• 415V/400V/380V (input as per request)

• Standard
• IS 2026, IEC 60076

• Usage
• Power distribution, Electrical isolation, Safety in industrial and commercial applications

• Voltage Booster Type
• Other, Not applicable (for isolation only)

• Weight
• Depends on capacity; typical 50-500 kg

• Capacity
• 1 kVA to 5000 kVA (custom rated)

• Coil Material
• Other , Electrolytic Copper or Aluminum

• Coil Number
• Other, Three (Primary and Secondary windings)

• Coil Structure
• Other, Toroidal/Layer wound

• Cooling Type
• ONAN (Oil Natural Air Natural) / AN (Air Natural)

• Dimension (L*W*H)
• Custom sizes (e.g., 1100mm x 800mm x 1200mm)

• Efficiency
• Up to 98%

• Frequency (MHz)
• 50/60 Hz

• High Voltage
• Up to 33 kV

• Load Loss
• As per IS/IEC Standard, e.g., 350W at rated load

• Low Voltage
• Up to 690 V

• Material
• Copper/Aluminum windings with laminated silicon steel core

• Operating Temperature
• -25C to +85C

• Output
• Customizable according to requirements

• Phase
• Three Phase

• Power Scope
• Up to 5000 kVA or customizable

• Product Type
• Other, Power/Distribution Transformer

• Rated Voltage
• 11 kV / 6.6 kV / 3.3 kV / 440 V / 415 V (custom available)

• Standard
• IS 2026, IEC 60076

• Usage
• Industrial, Commercial power distribution and voltage regulation

• Voltage Booster Type
• Other, Tap changing or On-load tap changer (optional)

• Weight
• 300 kg to 2000 kg (varies by rating)

• Capacity
• As per design specification

• Coil Material
• Other , Copper

• Coil Number
• Other, Three

• Coil Structure
• Other, Open Frame, Multiple Coil Structure

• Cooling Type
• Air Cooled / Natural Ventilation

• Dimension (L*W*H)
• Customizable, Typical: 320mm x 180mm x 250mm

• Efficiency
• Up to 98%

• Frequency (MHz)
• 50/60 Hz

• High Voltage
• Up to 440V

• Load Loss
• Low (<2%)

• Low Voltage
• Down to 110V

• Material
• Copper Winding, Laminated Silicon Steel Core, Epoxy Insulation

• Operating Temperature
• -10C to +50C

• Output
• Variable, as per design

• Phase
• Three Phase

• Power Scope
• Up to 100 kVA (varies by model)

• Product Type
• Other, Line Choke Transformer

• Rated Voltage
• 415V AC

• Standard
• IS 5553, IEC 60076, RoHS Compliant

• Usage
• Industrial Power Supply, Harmonic Reduction, Motor Protection, and Voltage Stabilization

• Weight
• Approx. 30-50 kg depending on rating
